Brand Name : Shenzhen LED World
Model Number : LW-RI4.81
Certification : CE,RoHS,FCC
Place of Origin : China
MOQ : 1 square meter
Price : Negotiation
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 3,000 square meters per month
Delivery Time : 15-20 working days after received your payment
Packaging Details : Carton/Plywood case etc.
Pixel resolution : 52dots(W)*52 dots(H)
Port type : HUB75-A
Pixel per cabinet : 104*104
Thickness : 65mm
Operation system : WIN98/2000/NT/XP/WIN7
Power switch : Automatic switch
Refresh frequency : ≥1,200HZ
Working voltage : AC110~220V±10%
Portable Advertising LED Displays P3.91 P4.81 P6.25 environment friendly
Features:
Application:
Our indoor ture color LED screen are widely used in auto Parts and Maintenance shops,elevator,stage,golf course,theme parks,pedestrian streets,factories,night club,concert and so on .
Parameter:
Unit Module | Item | Parameter |
Model Number | LW-P4.81 | |
Module size | 250mm*250mm | |
Pixel pitch | 4.81mm | |
Pixels Density | 43264/m2 | |
Pixel configuration | 1R1G1B | |
LED Package mode | SMD2121 | |
Pixel resolution | 52dots(W)*52 dots(H) | |
Max Power | 32W | |
Module thickness | 14.66mm | |
26.55mm | ||
Weight | 0.575kg | |
Drive type | Constant drive | |
Scan mode | 1/13scan | |
Port type | HUB75-A | |
Brightness of white balance | ≥1,200cd/m2 | |
LED Cabinet | Dimension | 500mm*500mm |
Monomer Module Number | 4 | |
Power supply | 5V/40A*1pcs | |
Thermal discharge | fan 1pcs | |
Pixel per cabinet | 104*104 | |
Best viewing distance | 5M~20M | |
Best viewing angle | 160°(W) 120°(H) | |
Temperature | storage:-35ºC~+85ºC | |
working:-20ºC~+50ºC | ||
Relative humidity | 10%-95% | |
Thickness | 65mm | |
Power | Working voltage | AC110~220V±10% |
Average Power consumption | 168W/m2 | |
Max.Power consumption | ≤560W/m2 | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation system | WIN98/2000/NT/XP/WIN7 | |
Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
Refresh frequency | ≥1,200HZ | |
Grey scale/colors | 4,096gray level/16.7M colors | |
MTBF | ≥9,000hours | |
Power switch | Automatic switch | |
Display Mode | ≥800*600/1024*768 | |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |

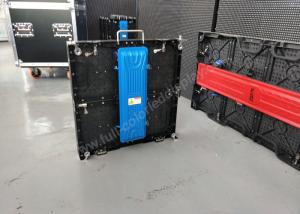

Product detail:
![]() |
Portable Advertising LED Displays P3.91 P4.81 P6.25 environment friendly Images |
