P8 Outdoor Sports Led Display Screen For Advertising 1/4 Scan

Product Categories

Shenzhen LED World Co.,Ltd

Contact Now

Name: P8 Outdoor Sports Led Display Screen For Advertising 14 Scan
Brand: Shenzhen LED World
Price: 1 USD

Brand Name : Shenzhen LED World

Model Number : LW-SDO 8

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 square meter

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1,500 square meters

Delivery Time : 12-18 working days after received your payment

Packaging Details : Plywood cartons or Flight case package

Grey scale : RGB Each 256, can display 16.7M colors)

Control Panels : Pentium4 or above

Operating Voltage : AC220V±10%

Module size : 256mm*128mm

Pixel pitch : 8mm

Module resolution : 32dots(W)*16dots(H)

Scanning method : 1/4 scan

Module quantity : 18pcs

Contact Now

P8 outdoor RGB Stadium LED Perimeter Display / Football Stadium Advertising 1/4 scan .

Features:

Applied with special court play software, allows you to manage the scores showing , program playback, Ads showing and the editing of the program list conveniently；
Strip design for good heat dissipation,good light transmission,light weight;
Signal & power aviation connectors are water & dust proof, stable and reliable;
Adopts strong electricity hot-plugs, no Spark discharge during hot-plug in and hot-plug out. Absolutely waterproof, tamper-proof and anti-corrosion;

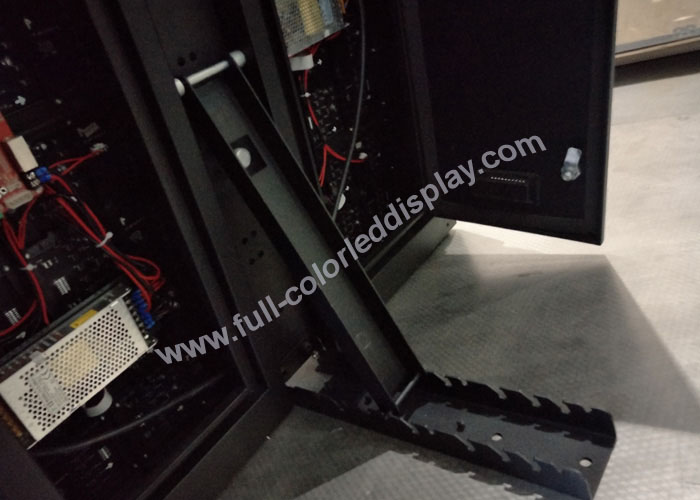

Supports full front maintenance. Power supply and receiving card can be taken off and replaced in front of cabinet for maintenance by which you can use more convenient;
High contrast rate by using black body LED,an reach 9000:1;
The product is with convenient installation, and flight connectors connecting；

Parameter:

Items	Parameter
Product Model	P8 Full Color Led Module
Module size	256mm*128mm
Pixel pitch	8mm
Pixel density	15625dots/m2
Pixel configuration	RGB 3 in 1
Module resolution	32dots(W)*16dots(H)
Module maximum power consumption	25W
Module Thickness	2.8CM
Module Weight	0.6kg
Driving method	Constant Current Driving
Scanning method	1/4 scan
Interface	HUB75B
Brightness	≥7500cd/m2
The specifications of cabinets
Cabinet size	768mm x 768mm
Module quantity	18pcs
Power supply	5V/40A 5V/60A
Cabinet resolution	96*96dots
Optimal viewing distance	8M ~ 80M
Optimal viewing angle	160°(W) 120°(H)
RH Working temperature	(Work :-20 °C~ +50 °C )
System operating humility	10%-95%
The specifications of power supplier
Operating Voltage	AC220V±10%
Average power consumption	300W/H
Maximum power consumption	≤600W/square meter
Electric current	≤20mA(single LED)
The specifications of control card
Control Panels	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization with PC
The specifications of the main technical parameters
Driving device	Constant Current Driving
Refresh rate	≥600HZ
Grey scale	RGB Each 256, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic Switch
Display Mode	800600/1024768/1280*900
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

All the LED display are inspected before shipment, If any problems happen, do not hesitate to contact with us, our team will do our best to solve for customer within 48hours;
(Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win);
Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions;
On-line remote service is available;
We offered software customization for our your specific usage;

FQA:

How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).we will update the production details in time.we will notice you before finish and after delivery the goods to you after we get full payment.About the time from start port to destination, it depends on the distance and the state of the forwarder;
Where is your company?
We are located in address:No.4 Bldg,Second Industrial Park of Baiwang,Baimang Village,Xili street,Nanshan District,Shenzhen,China;

Product detail:

P8 Outdoor Sports Led Display Screen For Advertising 1/4 Scan
