P6 Full Color Outdoor Digital Signage , Digital Advertising Displays

Shenzhen LED World Co.,Ltd
Contact Now

P6 Full Color Outdoor Digital Signage , Digital Advertising Displays

Brand Name : Shenzhen LED World

Model Number : LW-AO 6

Certification : RoHS,FCC,CCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1500 pcs/month

Delivery Time : 10~18 working days after deposit received

Packaging Details : Plywood case/Flight case etc.

LED Configuration : 1R1G1B SMD2121

Gamma Correction : -5.0~+5.0

Operating Temperature : -20°~+60°

MTBF : 10000hours

Support Input : Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Hanging Weight Support : 2T

Brightness Adjustment : 0~100%

Gray Scale : 16bits

Contact Now

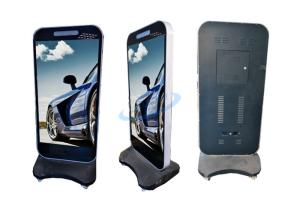

P6 full color led advertising player display board for outdoor use

Product description:

  • Voice Channel--Inbuilt Mini-speaker makes audio and video synchronize to get more attraction;
  • Brightness requirements, we design this players for both indoor & outdoor application, and the brightness ranges from 1000 to 5000cd;
  • Covered by tempered glass, make the display screen stable, safe and good viewing effect;
  • Can be with wheels below;
  • Cooling control principle;
  • The brightness can up to 5000 cd/m2;

Aplication:

Our full color LED display are widely used in Highway,Lobby,concert,shopping mall,Entertainment centers,public facilities,concert hall,subway,stadium,theme parks and so on .

Prameter:

Specification P6
Resolution 32(H)×32(V)
Pixel Pitch 6mm
LED Configuration 1R1G1B SMD2121
Pixel Density 27777 pixels/ m2
Module Size 160*160mm
Driving IC MBI5024
Driving Method Static Scan, Constant Current
Cabinet Weight 32kg/m2
Hanging Weight Support 2T
Surface Flatness ±0.25
Brightness ≥5500cd/ m2
View Angle 140°/140°
Gray Scale 16bits
Display COLOR 281 trillion
Brightness Adjustment 0~100%
Operation Power AC220V/50HZ or AC110V/60HZ
Max. Power Consumption 780W/ m2
Average Power Consumption 310W/ m2
Control Mode Synchronous display with control PC by DVI
Frame Update Frequency 60~85HZ
Screen Refresh Frequency 300~1000Hz
Gamma Correction -5.0~+5.0
Support Input Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode 1024x768,1280x1024,1600x1200,1920x1280
Brightness Correction Pixel, Module, Cabinet
Operating Temperature -20°~+60°
Operating Humidity 10~95% RH
Operating Life 100,000hours
MTBF 10000hours
Out of Control Rate <0.02%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why choose us:

  • No MOQ;
  • Good service whenever;
  • "attractive price! If you have any urgent questions, pls contact me without hesitation;
  • 100% QC inspection before shipping;
  • OEM & ODM available;
  • Quality advantage: From material to finished product, from design to produce, we control all steps;

Our service:

  • We offered technical advice to you before buying our products;
  • Monthly production capacity: 3000 Sq. M;
  • In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
  • Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions;
  • Well-trained and experienced staffs to answer all your enquires in fluent English;

Product detail:

P6 Full Color Outdoor Digital Signage , Digital Advertising Displays

P6 Full Color Outdoor Digital Signage , Digital Advertising Displays
